1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna

Product Categories
Shenzhen AMEISON Communication Equipment Co.,Ltd.
Contact Now

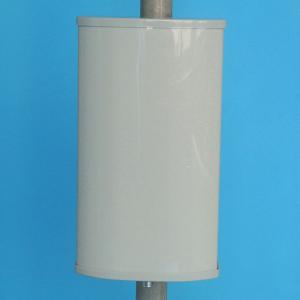

1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna

  • 1
  • 2
  • 3

Brand Name : AMEISON

Model Number : AMXP-1722S-D11L90

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Frequency Range : 1710～2170MHz

Type : Sector Panel Antenna

Polarization : ±45º

Gain（dBi） : 11

half-power beam width（°） : H:90 V:30

Front-to-back ratio（dB） : ≥23

Input Impedance（Ω） : 50

VSWR : ≤1.5

Maximum input power（W） : 200

Lightning protection : DC Ground

Input connector type : N Female

Contact Now

1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna

AMXP-1722V-D14L90

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

DCS,PCS,3G system

Wireless communication and data transmission system

AMXP-1722S-D11L90

Electrical Specifications
Frequency range(MHz) 1710～2170
Polarization ±45º
Gain(dBi) 2×11
Half-power beam width(°) H:90 V:30
Front-to-back ratio(dB) ≥23
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 330*175*80
Packing size(mm) 360*200*150
Antenna weight (kg) 1.3
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67
Mounting way pole-holding
Mounting hardware(mm) ￠35～￠75

Wholesale 1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna from china suppliers

1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna Images
